HD Micro Ingredient Systems

The HD Micro Ingredient Advantage

When you are working with ingredients that are closely regulated or very expensive, the highest degree of accuracy is of critical importance. APEC has recognized the challenges of industries that require a highly accurate way to dispense micro ingredients into their process and have created the HD Micro Ingredient System to address these challenges. The APEC HD Micro Ingredient System takes accuracy to the next level by offering pinpoint accuracy. The HD Micro Ingredient System delivers high capacity weighing with a 40lb maximum load size; gram accurate. The HD Micro utilizes highly accurate capacitive digital load cell technology. Because these load cells are hermetically sealed, they are safe to use in food safe and washdown environments.

Advantages of the HD Micro Scale include:

Optional TSS feeders provide repeatable accuracy to 0.002 lbs.
HD Micro ingredient scale uses capacitive load cell technology that weighs at gram accuracy for exceptionally precise weighing and batching
Inclined feeders to prevent flushing

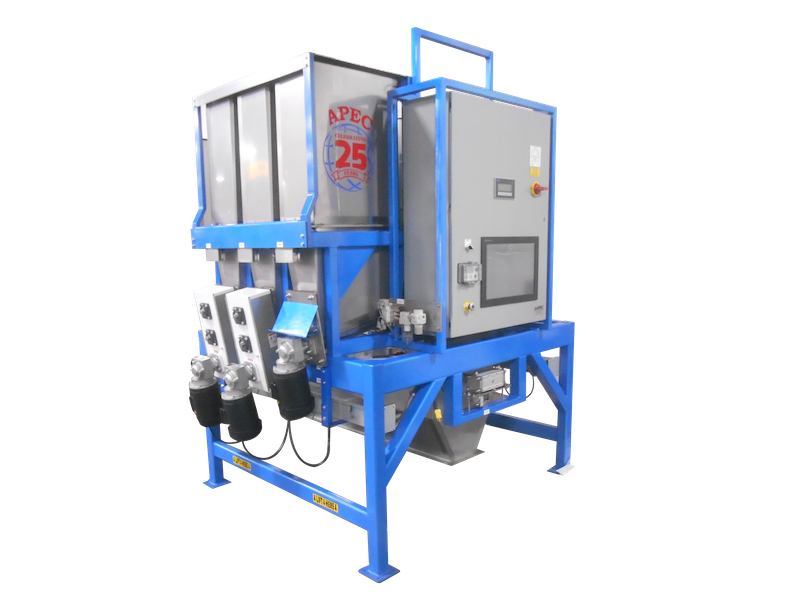

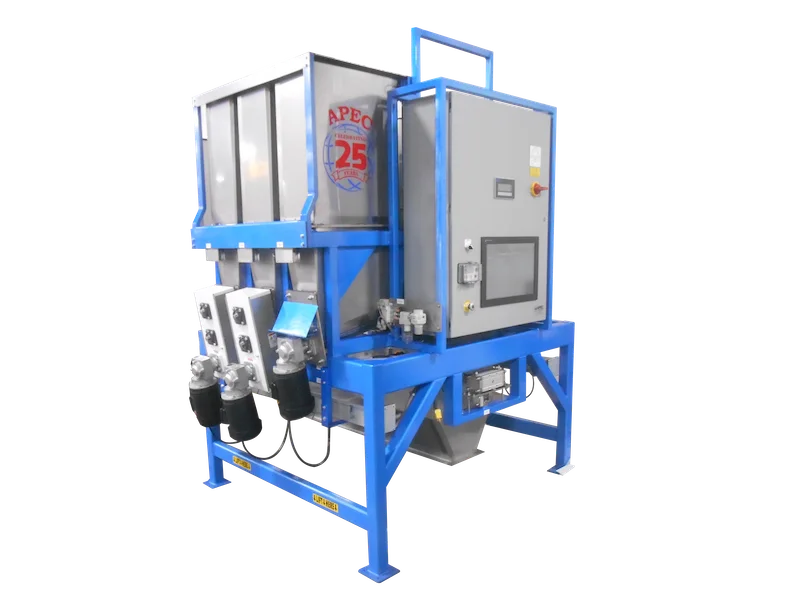

HD Micro Ingredient System

HD Micro Ingredient System Product Details

Standard Features


  • Removable 6 or 10 cu. Ft. capacity stainless steel bins with hinged and gasketed covers
  • Stainless steel feeder screws with variable pitched flighting
  • Control panel mounted on the frame and completely wired at the factory, includes AC inverter, motor contactors, overload, PLC for two speed operation, and two speed control MMI on the panel for individual feeder control
  • Power cords with twist lock plugs
  • Tubular frame with telescoping legs
  • Roll over scale tub or optional indexing scale vessel
  • Compact through floor design or optional walk between bins

Optional Features


  • Bin extensions to increase capacity
  • Bin inventory (bins on load cells)
  • Electric bin lid locks
  • 50 Hz motors
  • Food grade finish
  • Remote I/O
  • Explosion proof motors
  • Dust collection pick up point

Optional Features Cont’d


  • Feeder shut off gate
  • Mechanical agitation
  • Vibratory feeders
  • Barcode ingredient confirmation
  • Loss in Weight operation
  • Various auger sizes
  • Custom configurations
  • Hopper style scale hopper

With such a strong foundation of standard features available, and such a wide variety of sizes, capacities, discharges options, finishes, and additional custom options, APEC is confident that we can fit your operations with an HD micro ingredient system that will integrate smoothly into your business’s unique circumstances.

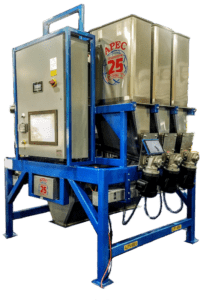

HD Micro Ingredient System
